21in x 16.75in Flanged, Round 15in x 36in long Dust Collector Cartridge, Spunbond Polyester

  • $170.00
    Unit price per
Shipping calculated at checkout.

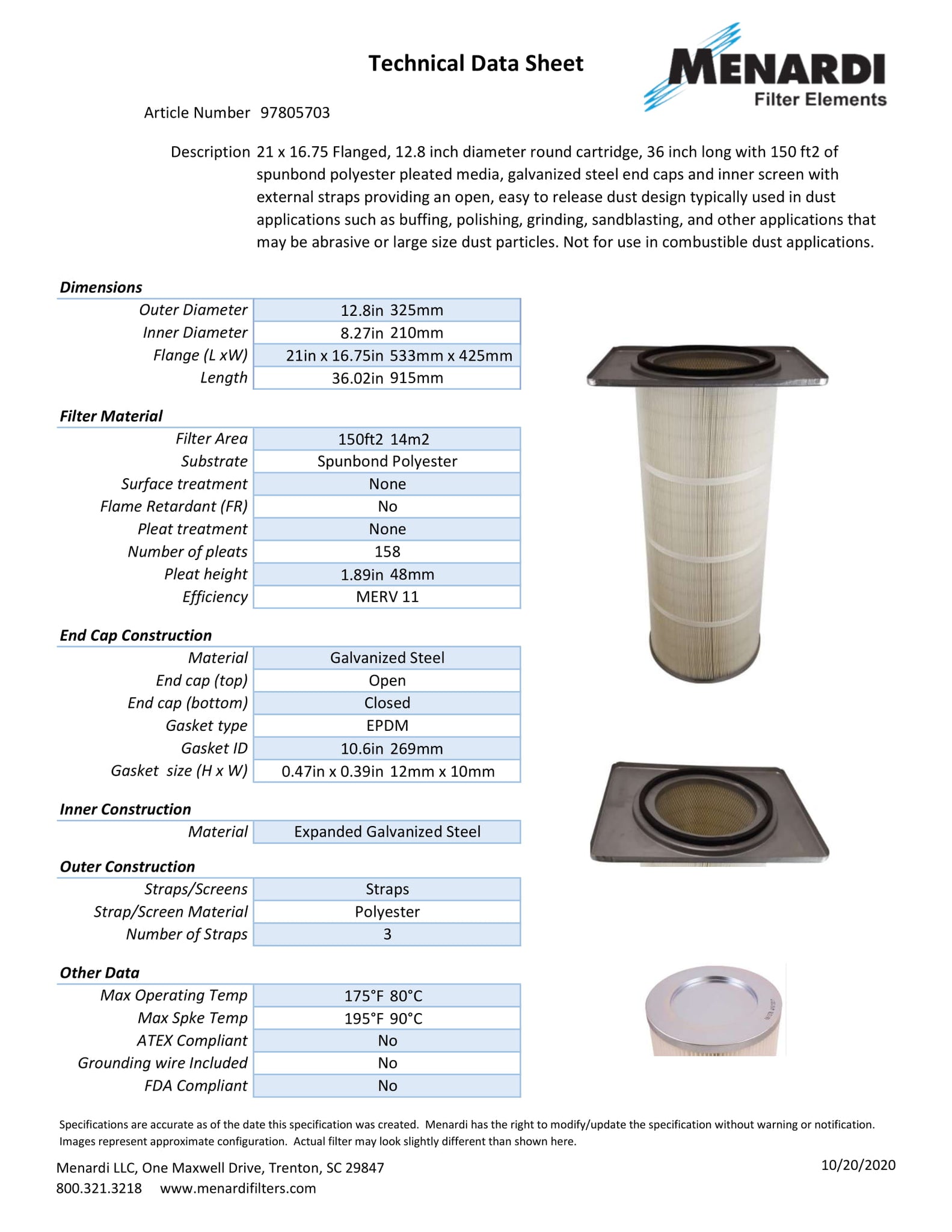

Download Product Leaflet

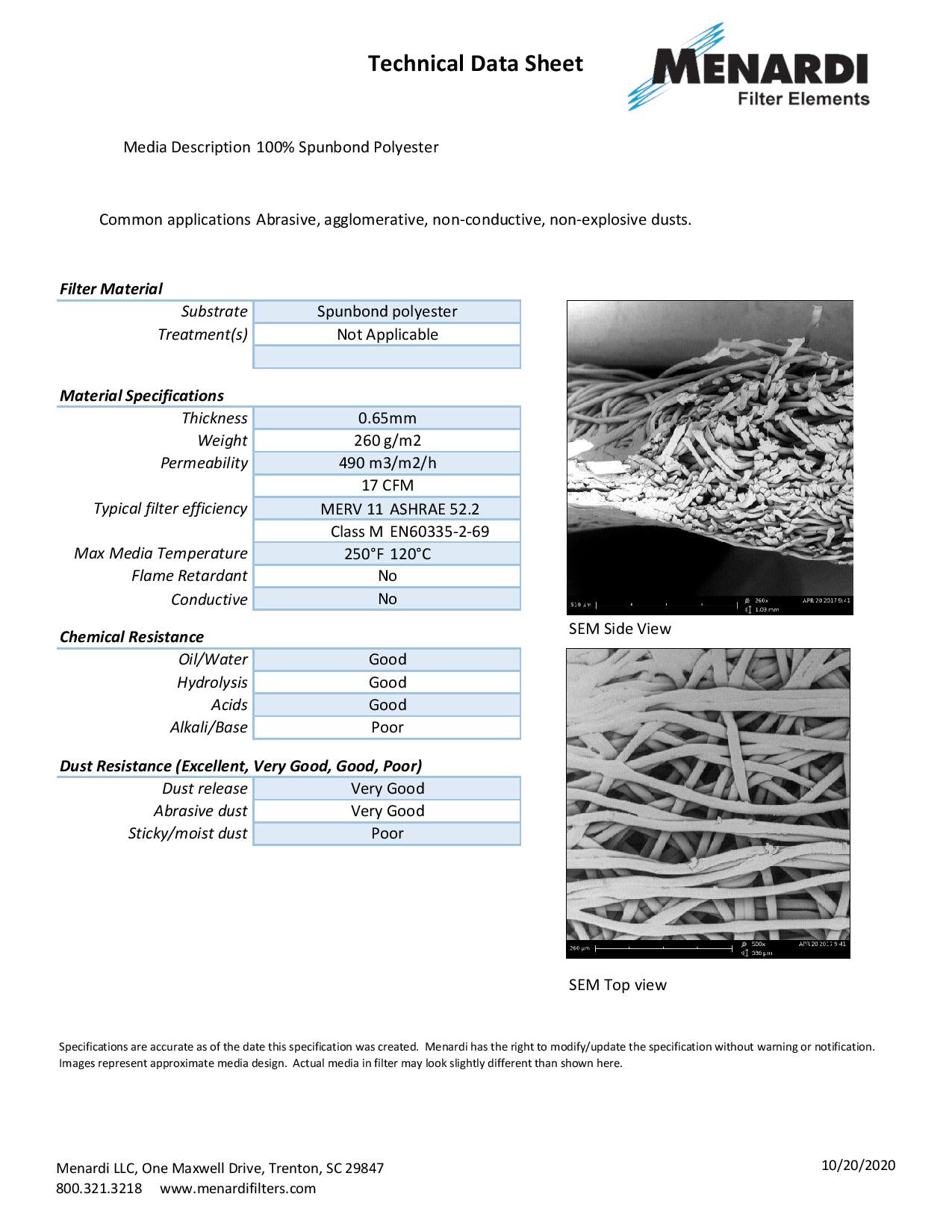

Download Media Leaflet


Made in the USA with strict quality control standards, Menardi Cartridges are designed and manufactured to meet and/or exceed the original manufacturers design for applications including welding, metal cutting, grinding, shot blasting, thermal spray, composite manufacturing, buffing and polishing, baking, pharmaceuticals, nutraceuticals, chemical powders, bag filling, woodworking, sanding, and many more applications where cartridge dust collectors are used.

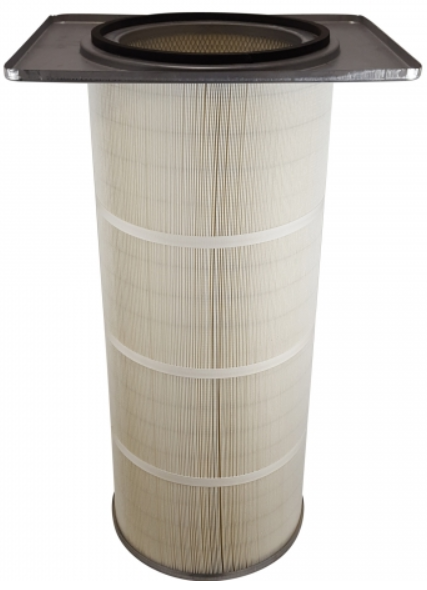

General Description: 21 x 16.75 Flanged, 15 inch diameter round cartridge, 36 inch long with 150 sq ft of spunbond polyester pleated media, galvanized steel end caps and inner screen with external straps providing an open, easy to release dust design typically used in dust applications such as buffing, polishing, grinding, sandblasting, and other applications that may be abrasive or large size dust particles. Not for use in combustible dust applications.

Part Number: 97805703


  • Outer Diameter: 15.04 in.
  • Inner Diameter: 10.59 in.
  • Flange (L x W): 21 x 16.75 in
  • Length: 36.02 in.

Filter Material

  • Substrate: Spunbond Polyester
  • Surface/Treatment: None
  • Filter Area: 150 sq ft
  • Number of Pleats: 158
  • Pleat Lock: No
  • Pleat Height: 2 in. Nominal
  • Efficiency: MERV 11
  • Flame Retardant: No

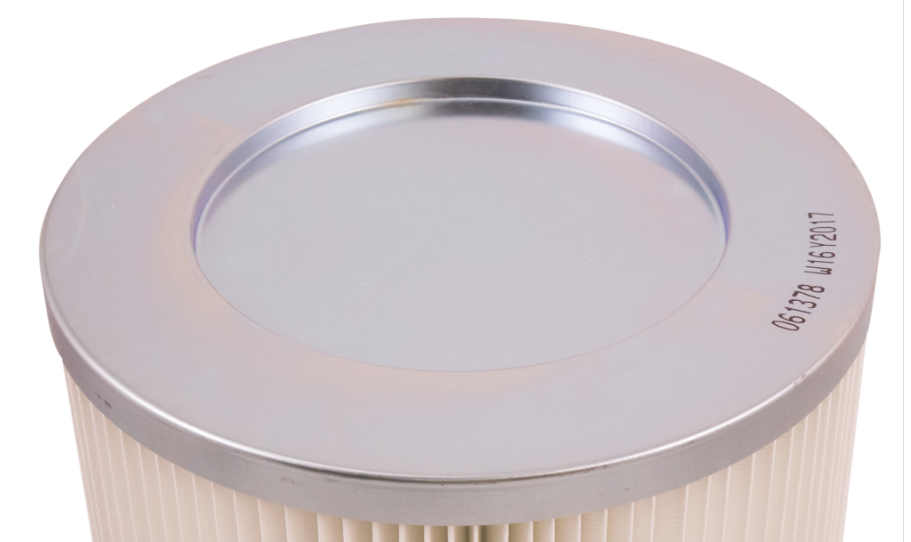

End Cap Construction

  • Material: Galvanized Steel
  • End 1: Open
  • End 2: Closed
  • Gasket: EPDM
  • Gasket ID: 10.6 in
  • Gasket (H x W): 0.47 x 0.39 in

Inner Construction

  • Material: Expanded Galvanized Steel

Outer Construction

  • Straps/Screen: Straps
  • Strap Material: Polyester
  • No. of Straps: 3

Other Data

  • Max Operating Temp: 175 F
  • Max Spike Temp: 195 F
  • Combustible Dust Rated: No
  • FDA Compliant: No

All cartridges are made to order, ensuring you get a brand new filter every time.  Standard production time before shipping is 10-15 days.

Minimum purchase quantity of 4 units is required.
