Round 12.8in x 26in Open/Closed Dust Collector Cartridge, 80/20 Blended Paper Wide Pleat and 2 Straps

Regular price
$70.00
Sale price
$70.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

Minimum purchase quantity of 4 units is required.



Made in the USA with strict quality control standards, Menardi Cartridges are designed and manufactured to meet and/or exceed the original manufacturers design for applications including welding, metal cutting, grinding, shot blasting, thermal spray, composite manufacturing, buffing and polishing, baking, pharmaceuticals, nutraceuticals, chemical powders, bag filling, woodworking, sanding, and many more applications where cartridge dust collectors are used.

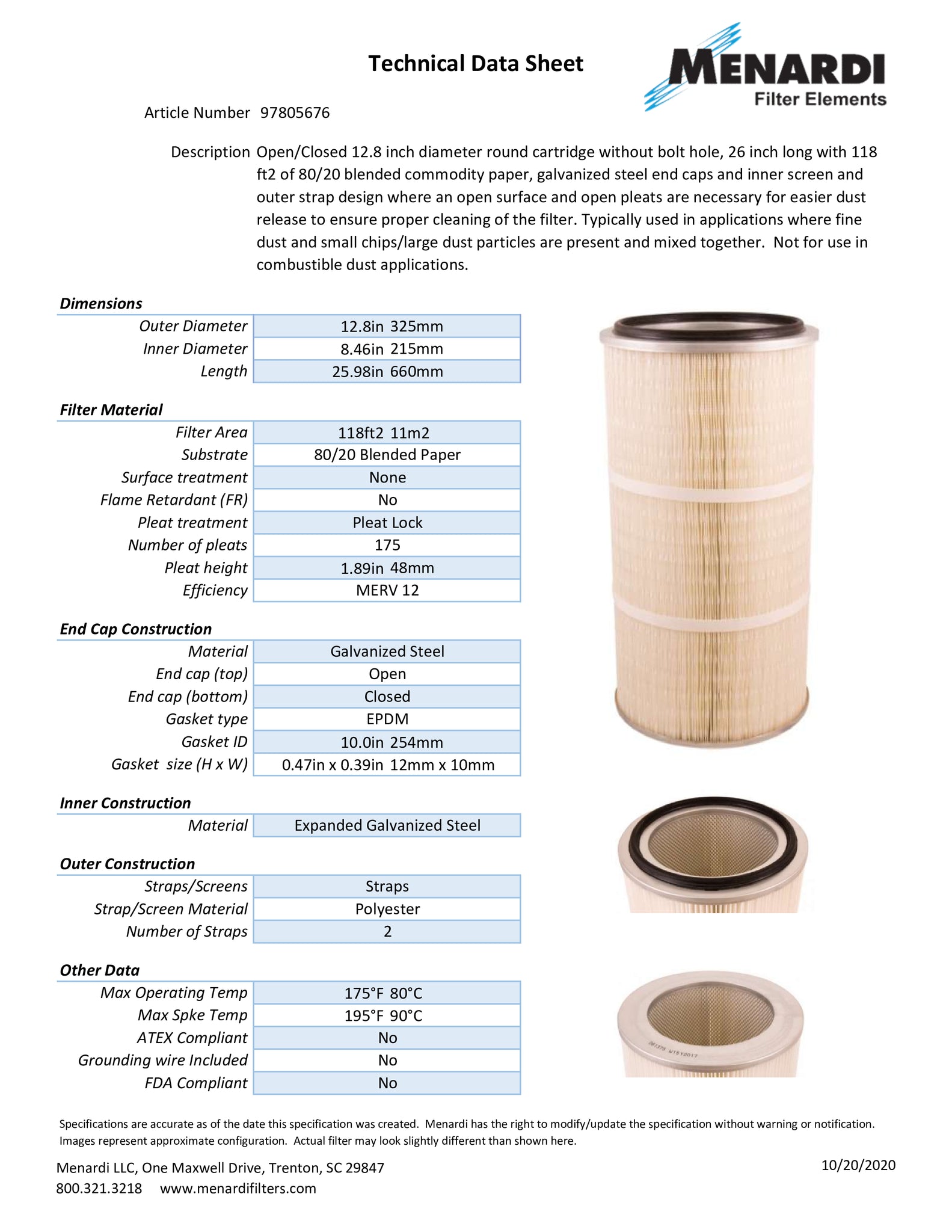

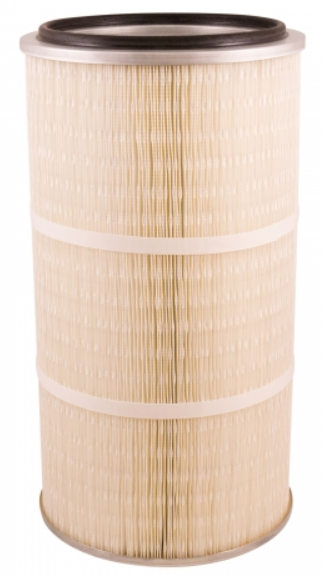

General Description: Open/Closed 12.8 inch diameter round cartridge without bolt hole, 26 inch long with 118 sq ft of 80/20 blended commodity paper, galvanized steel end caps and inner screen and outer strap design where an open surface and open pleats are necessary for easier dust release to ensure proper cleaning of the filter. Typically used in applications where fine dust and small chips/large dust particles are present and mixed together. Not for use in combustible dust applications.

Part Number: 97805676

Dimensions

  • Outer Diameter: 12.8 in.
  • Inner Diameter: 8.46 in.
  • Flange (L x W): NA
  • Length: 25.98 in.

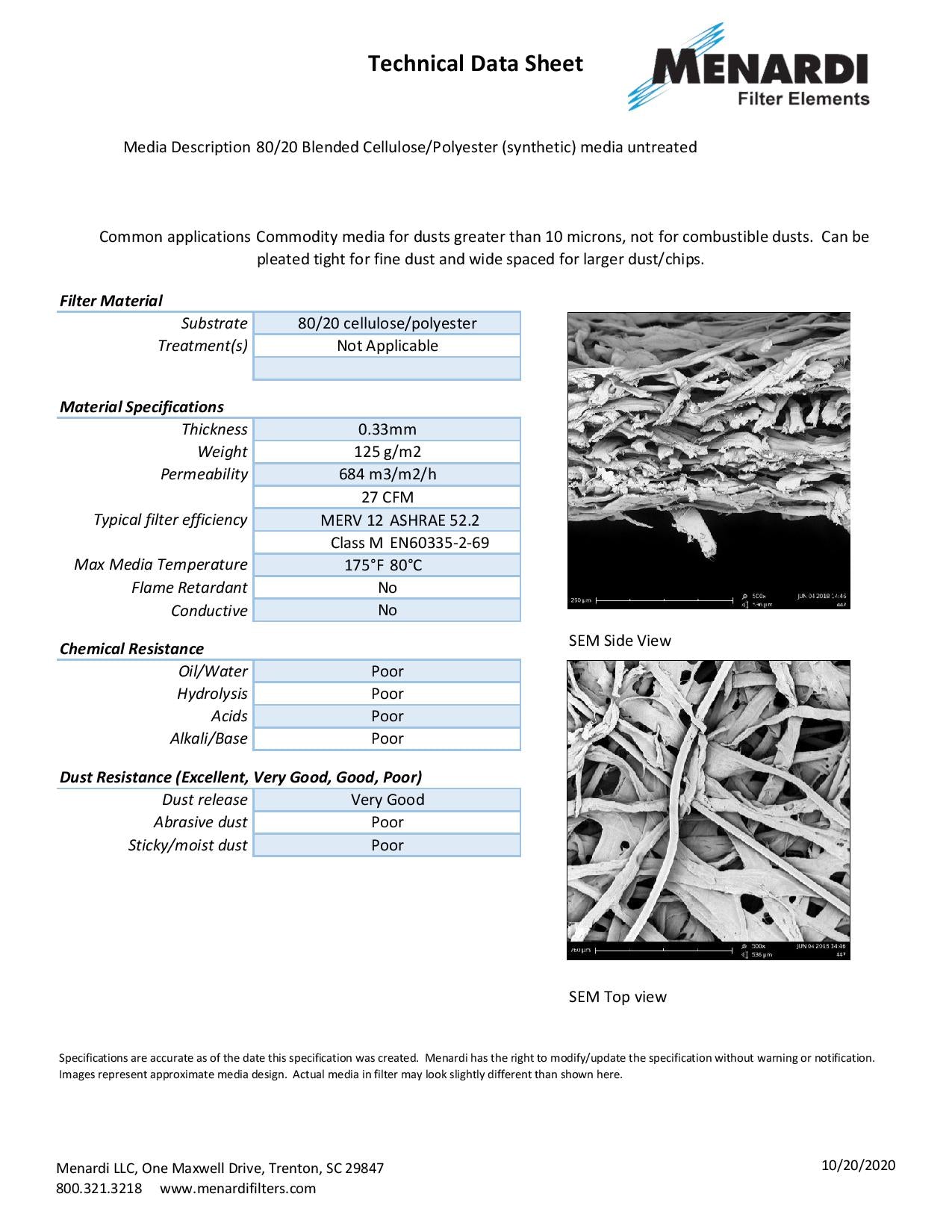

Filter Material

  • Substrate: 80/20 Blended Paper
  • Surface/Treatment: None
  • Filter Area: 118 sq ft
  • Number of Pleats: 175
  • Pleat Lock: Yes
  • Pleat Height: 2 in. Nominal
  • Efficiency: MERV 12
  • Flame Retardant: No

End Cap Construction

  • Material: Galvanized Steel

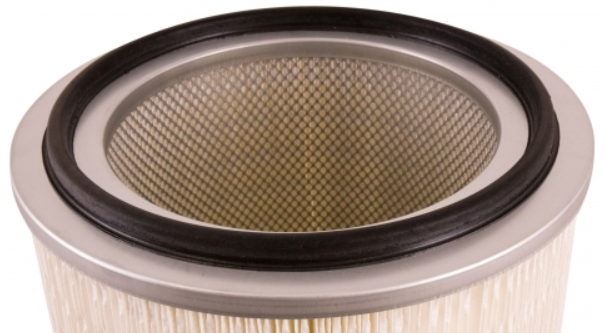

  • End 1: Open

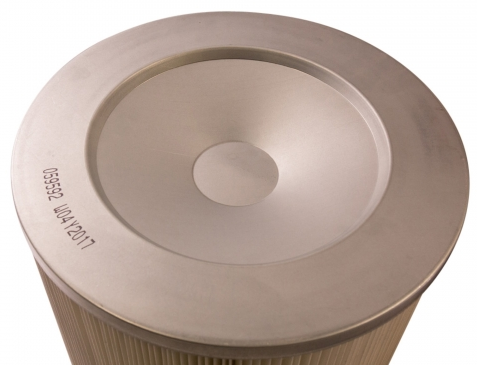

  • End 2: Closed
  • Gasket: EPDM
  • Gasket ID: 10.0 in
  • Gasket (H x W): 0.47 x 0.39 in

Inner Construction

  • Material: Expanded Galvanized Steel

Outer Construction

  • Straps/Screen: Straps
  • Strap Material: Polyester
  • No. of Straps: 2

Other Data

  • Max Operating Temp: 175 F
  • Max Spike Temp: 195 F
  • Combustible Dust Rated: No
  • FDA Compliant: No

All cartridges are made to order, ensuring you get a brand new filter every time.  Standard production time before shipping is 10-15 days.
